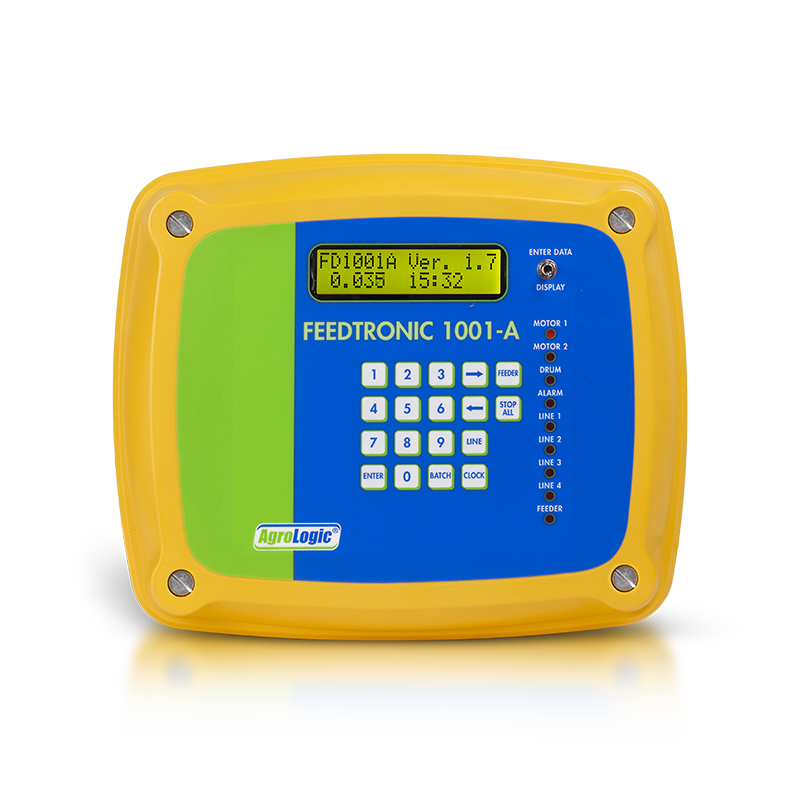

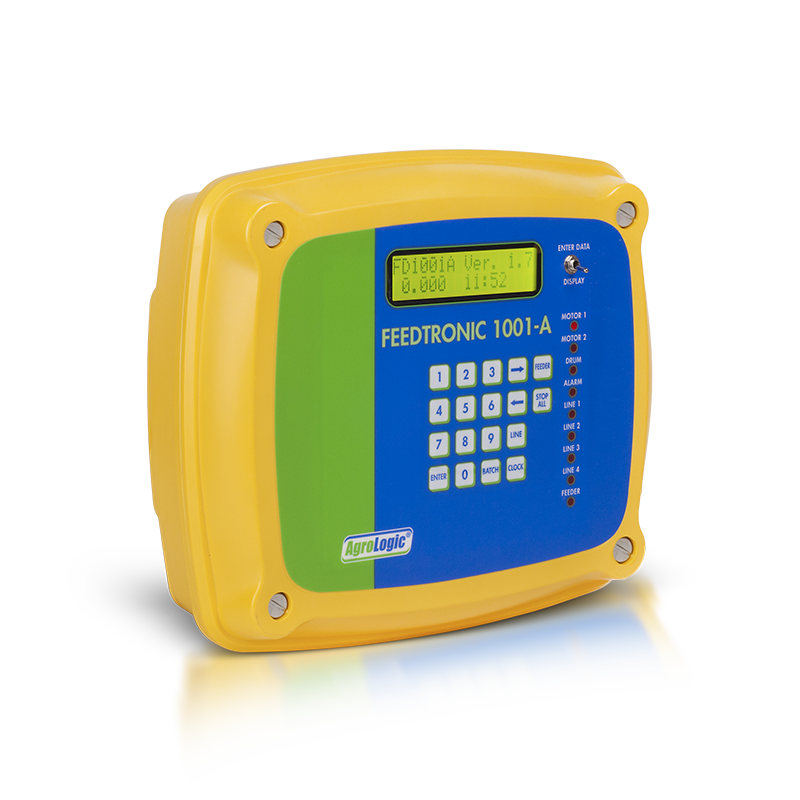

FeedTronic 1001A

FeedTronic 1001-A is a highly flexible, powerful and accurate electronic feed weighing system especially designed for breeders and pullet raising where precise restrictive feed control is a must.

Electronic Feed Weighing System for Separate Restrictive Male & Female Feeding

Product line:

For:

Reliability

Feedtronic 1001A is an advanced electronic feed weighing system designed specifically for breeder and pullet operations where precise and restrictive feed control is essential. It ensures accurate distribution for both male and female chickens across multiple feeding points.

Key Features

Precision Feeding for Enhanced Flock Management

Distributes different feed quantities for male and female birds.
Supports feeding from two silos to up to 15 hoppers.
Available in two models:
- 5 Program Version - manages up to 5 hoppers.
- 15 Program Version - manages up to 15 hoppers.

Flexible and Programmable Feeding Cycles

Program different feed quantities for each hopper throughout a 24 hour period.
Integrated real-time clock starts feeding automatically at preset times.
Can operate feed lines up to 8 times per day using an on/off timer.

High Capacity Multi Cycle Distribution

Supports up to 64 different restrictive feed quantities at 64 preset times for up to 15 hoppers.
Displays total daily feed per hopper and overall flock feed consumption.

Safe, Reliable, and User Friendly

User-friendly operation with a clear alphanumeric display.
Battery backup preserves memory in the event of power failure.
Built in alarm relay activates if:
- A malfunction occurs
- A silo becomes empty
Internal calibration program allows simple setup and adjustments from the keypad.

Power: 220V, 50/60Hz

Batch per weighing: 5 Kg – 20 Kg

Restrictive Feeding: 5 Kg – 9999 Kg

Capacity per hour: 3600 Kg

Accuracy: 0.5%

Load Cell: 70 Kg

System Weight: 12 Kg

In & Output: Serial RS 422

Display: Alpha numeric 16x2
