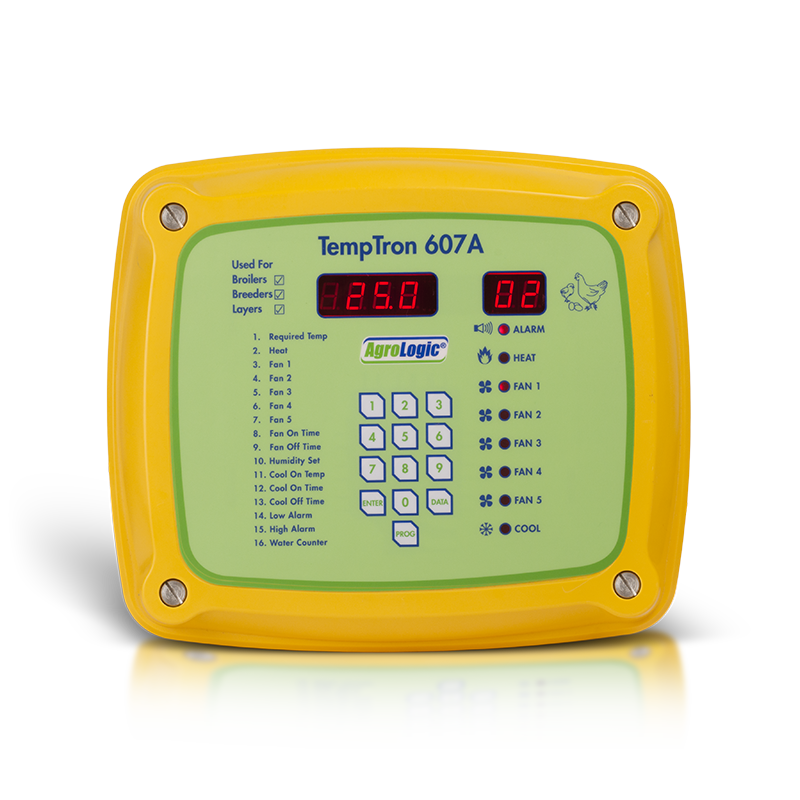

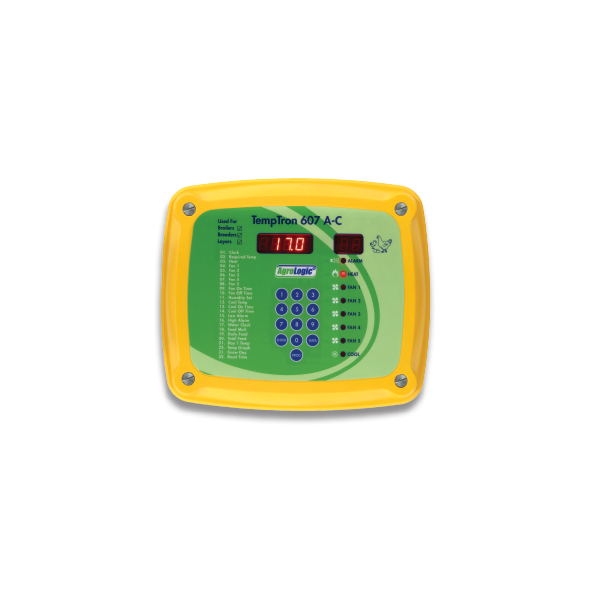

TempTron 607

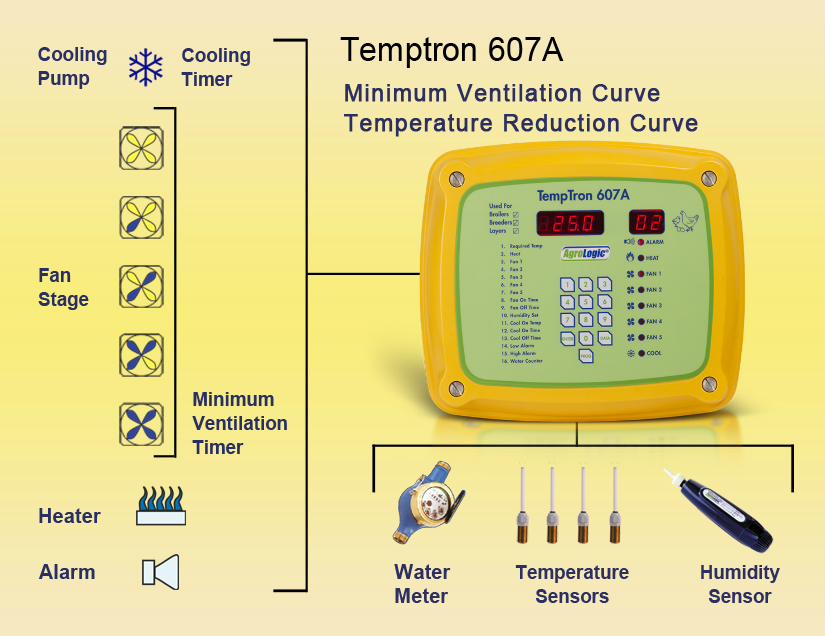

Multi Sensor Monitoring:

• Supports up to 4 temperature sensors and displays both individual readings and the average house temperature.
• Optional humidity sensor for enhanced climate accuracy.

Powerful Control Capabilities:

• 8 built in relays for fans, heaters, inlets, curtains, and alarms.
• Two 0-10V outputs for variable speed fans, heating or light systems.
• Two digital inputs for water and feed measurement.
• Automatic temperature reduction curve for optimized animal growth conditions.

Flexible Configuration:

• Available in standard versions or as an OEM -customized solution.

Central Monitoring & Management:

• Full remote management via WebChick Pro together with our DCS remote unit.

Available Programs

Tunnel Ventilation:

• 5 fan groups operating by offset temperature stages.
• First fan group supports minimum ventilation using a cycle timer.
• 1 heating group.
• Cooling system with on/off timer.
  • Optional humidity based cooling shutdown.
• High/low temperature alarm relay.
• Real time clock with automatic temperature reduction curve.

Natural Ventilation:

• 2 independent side curtains/inlets with configurable minimum positions.
• 1 heating group.
• 1 fan group with offset control and minimum ventilation cycling.
• Cooling system with on/off timer.
• Alarm relay for high/low temperature and flap faults.
• Automatic temperature reduction curve.

Fan Control:

• 4 fan groups with offset temperature operation.
• First fan group used for minimum ventilation cycling.
• 1 heating group.
• 1 adjustable flap linked to active fan stages.
• Alarm relay for temperature and flap related faults.
