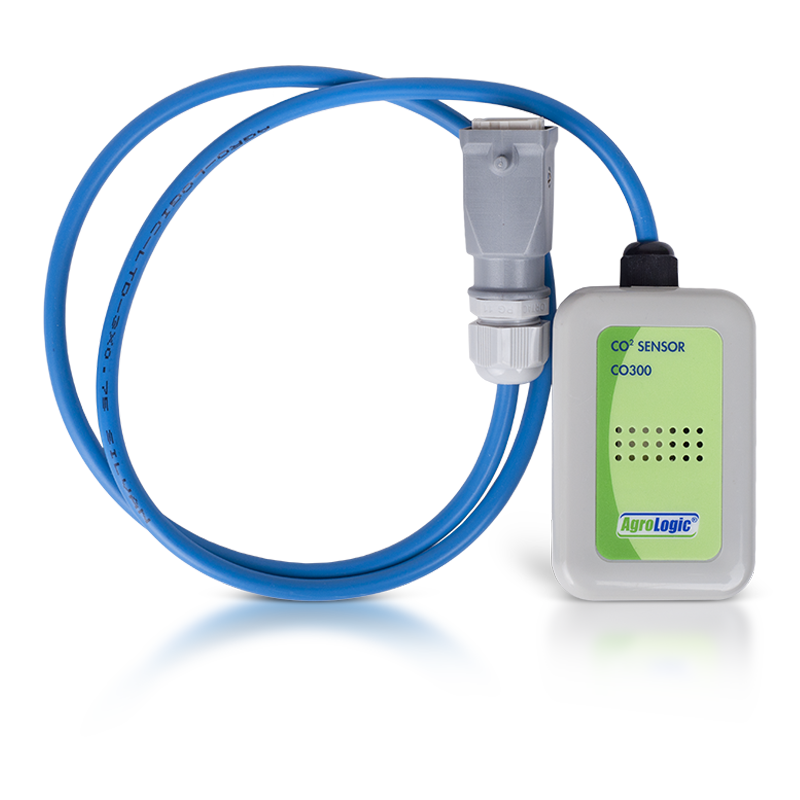

CO2 Sensor CO300

The CO300 Sensor is a reliable CO2 sensor designed to be used in harsh agricultural and industrial environments sush as in poultry and sniwe farms.

Easy to operate and install.

Category:

Product line:

For:
Reliability

The CO300 Sensor is a reliable CO2 sensor designed to be used in harsh agricultural and industrial environments sush as in poultry and sniwe farms.

The CO300 Sensor is compensated for a 0-50°C temperature range covering a 0-5000 PPM CO2 range.

The CO2 measurement is converted to an analog output from 0-5V relative to 0-5000 PPM CO2 range.

Input voltage: 13-24V DC

Output voltage: 0-5V DC

Consumption: 100mA

RH range: 20-95%

Operating temperature: -20° to 55°C

Accuracy: 75 PPM or 10% of reading (whichever is greater)

The CO300 Sensor accuracy: @72°F (22°C) is a ± 2%.

Temperature Dependence: 0.2% FS per C° Stability < 5% of FS or < 10% reading annual

Pressure Dependence: 0.135 per mm Hg

Calibration interval: Not required

Response time: < 2 minutes for 90% step change typical

Warm up time:
• < 2 minutes (operational)
• 10 minutes (maximum accuracy)

Operating conditions:
• 32°F to 122°F (0°C to 50°C)
• 0 to 95% RH, non-condensing
