SILO A/D

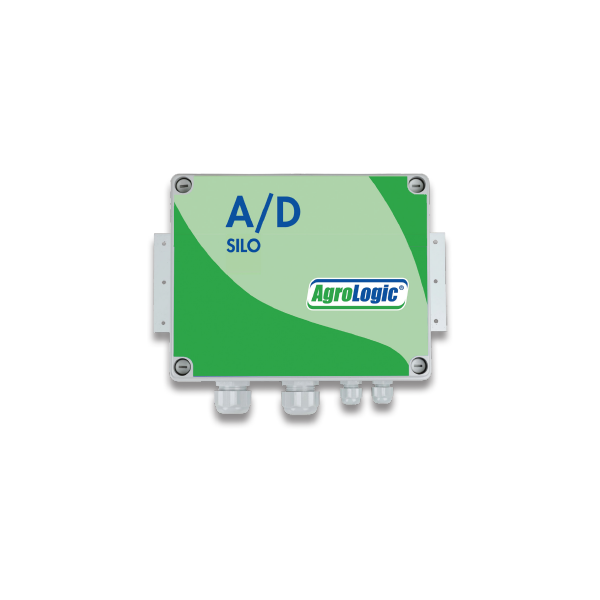

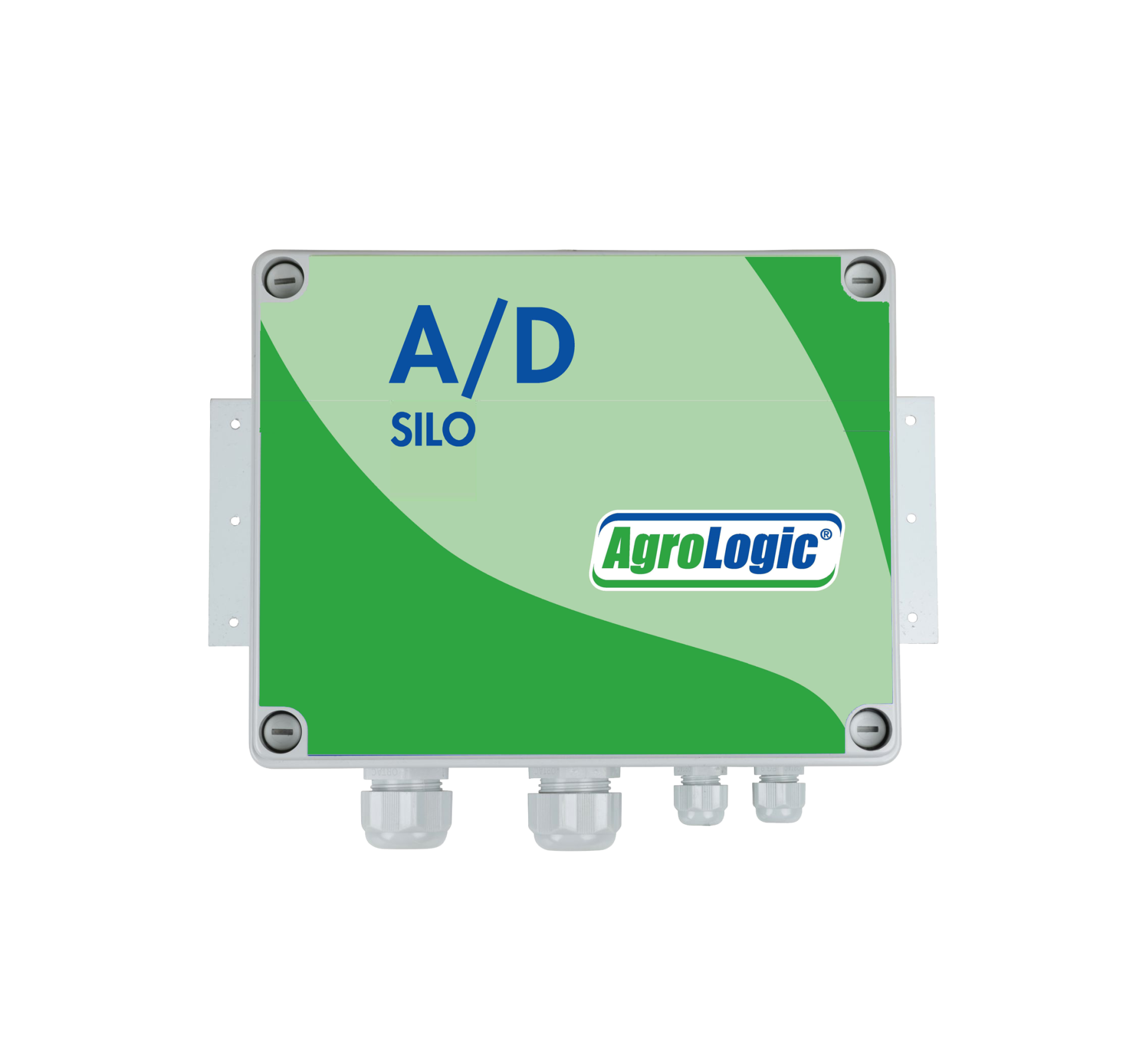

The SILO A/D serves as a junction box for silo weighing load cells. One box can be used for two silos. Up to 16 loadcells can be connected (maximum 8 load cells per silo). The SILO A/D can be used with Agrologic controllers Image pro, Image III, Vision 24S, FeedTronic 5005 and the FeedTronic 4004.

Easy to operate and install.

For:
SILO-AD
Reliability

The SILO A/D serves as a junction box for silo weighing load cells. One box can be used for two silos.

Up to 16 loadcells can be connected (maximum 8 load cells per silo).

The SILO A/D can be used with Agrologic controllers Image pro, Image III, Vision 24S, FeedTronic 5005 and the FeedTronic 4004.

Power: 12-48VDC

Accuracy: 0.1%

Resolution: 1 kg/Lb

Temperature Compensated: -10 to +40°C

Environmental Protection: IP65
